AI motion recognition · OSC controller
LH XYZ

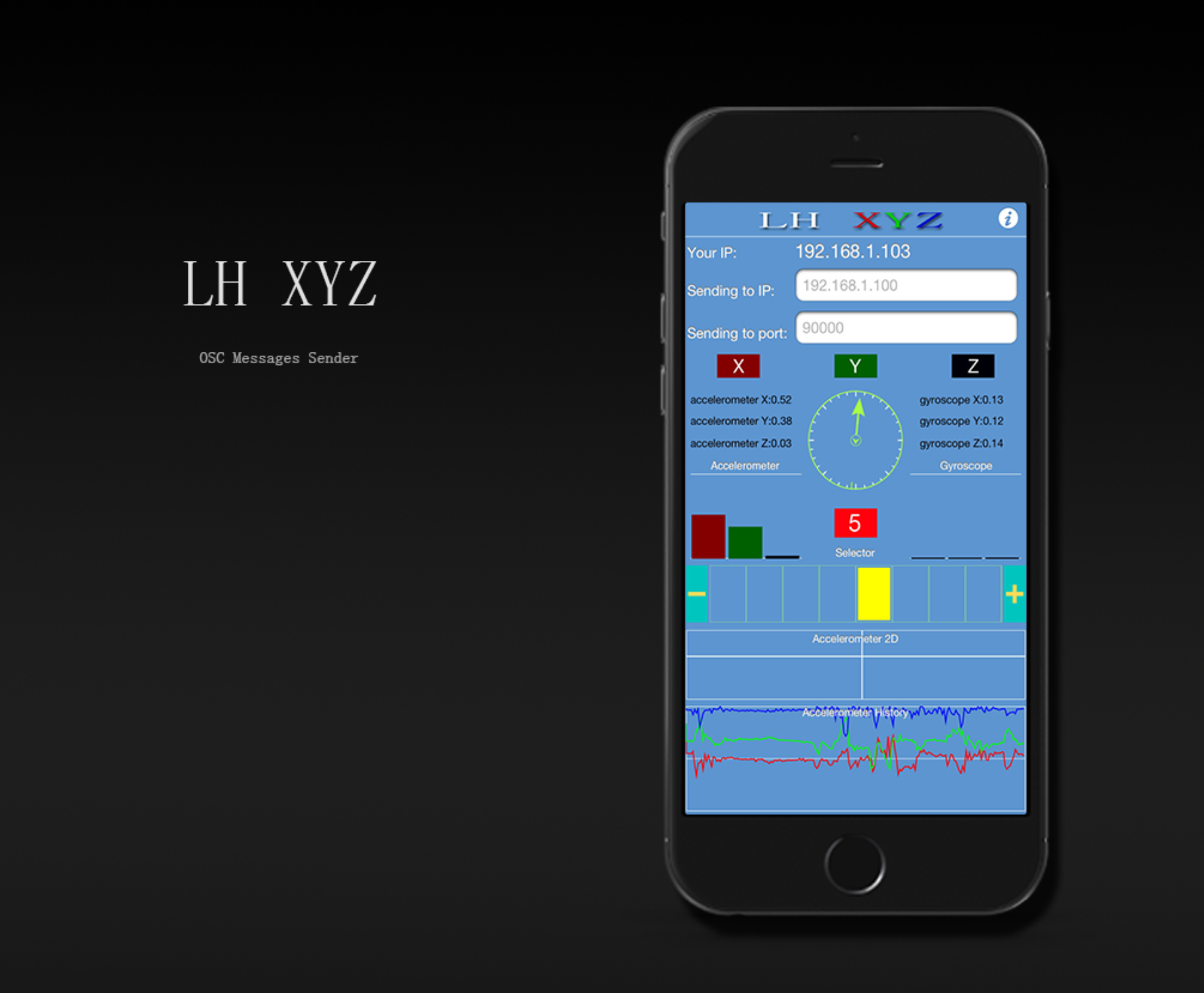

LH XYZ turns an iPhone into a wireless OSC motion controller. It sends accelerometer and gyroscope data to OSC-compatible host applications while its AI neural-network motion-recognition system identifies six tagged types of body movement.
AI Neural-Network Motion Recognition
AI Motion Recognition is one of LH XYZ’s defining features. Based on Human Activity Recognition using smartphone sensor data, the system recognizes six tagged motion patterns: left-to-right sweep, right-to-left sweep, far-to-near movement, an upright forward quarter-circle gesture, vibration, and idle.
The motion-prediction tag values are sent to OSC receivers, allowing recognized movements to drive music, visuals, and other real-time interactive systems.
Six AI Motion Tags
Left-to-Right Sweep
Move the phone quickly from the left side of your body to the right side.
Right-to-Left Sweep
Move the phone quickly from the right side of your body to the left side.
Far-to-Near Movement
Move the phone quickly from a position farther from your body toward a position closer to your body.
Upright Forward Quarter-Circle
Keep the phone upright, move it quickly forward and away from your body, and trace a quarter-circle motion.
Vibration
Vibrate the phone.
Idle
Keep the phone still.
OSC Sensor Streaming
LH XYZ sends accelerometer and gyroscope data from the iPhone over a wireless network to any host application that supports the OSC protocol. The sensor data can be used to control music and other interactive parameters in real time.
A sensor-data sample rate of up to 200 Hz provides detailed accelerometer and gyroscope information for responsive control and analysis.
Core Features
AI Neural-Network Motion Recognition
Recognizes six tagged movement types from iPhone accelerometer and gyroscope data.
Human Activity Recognition
Classifies six tagged motion patterns: left-to-right sweep, right-to-left sweep, far-to-near movement, upright forward quarter-circle gesture, vibration, and idle.
OSC Motion Tags
Sends motion-prediction tag values to OSC receivers for real-time interactive control.
200 Hz Sensor Streaming
Provides a high sample rate for detailed accelerometer and gyroscope data.
Accelerometer Data
Streams iPhone accelerometer measurements over the wireless network.
Gyroscope Data
Streams iPhone gyroscope measurements to OSC-compatible host applications.
Sensor Data Histogram
Displays sensor data as a histogram for monitoring and analysis.
Visualized Sensor Data
Provides a visual representation of incoming motion-sensor information.
OSC Host Platforms
Supported OSC host environments include Max/MSP, SuperCollider, vvvv, Max for Live, Processing, Csound, and other applications that can receive OSC messages.
- Max/MSP
- SuperCollider
- vvvv
- Max for Live
- Processing
- Csound
- Other OSC-compatible hosts
LH XYZ FAQ
What is LH XYZ?
LH XYZ is an iPhone OSC message sender that streams accelerometer and gyroscope data over a wireless network to OSC-compatible host applications.
What makes LH XYZ’s AI Motion Recognition distinctive?
It uses a neural-network Human Activity Recognition system based on smartphone sensor data to identify six tagged movement types and send the resulting motion tags to OSC receivers.
What kinds of movement can LH XYZ recognize?
The system recognizes six tagged motion patterns: left-to-right sweep, right-to-left sweep, far-to-near movement, an upright forward quarter-circle gesture, vibration, and idle.
What is the sensor-data sample rate?
LH XYZ provides accelerometer and gyroscope data at a sample rate of up to 200 Hz.
Which host applications can receive data from LH XYZ?
OSC-compatible hosts include Max/MSP, SuperCollider, vvvv, Max for Live, Processing, Csound, and other applications that support OSC.
